Article 3.S.49x.03
Catalog-# / Description
Technical details
| Technical data | |
|---|---|

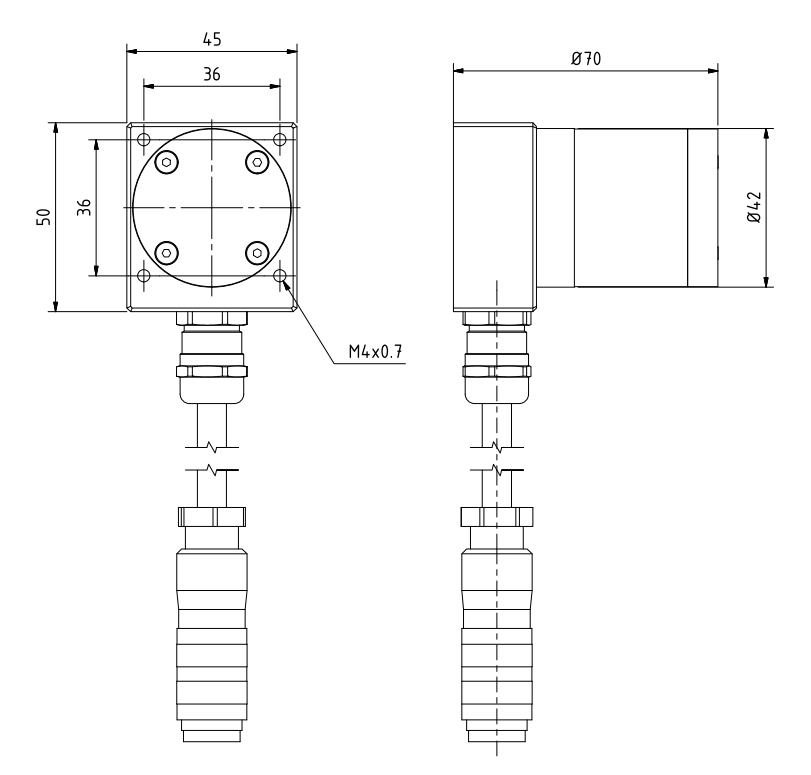

| Dimensions L x W x H | 50x45x70mm |
| Case | POM |
| Cable length | 3m |
| Plug | 6-pole at 3.p.49 for balancing electronics of series 3.AB2xx |
| Plug | 7-pole at 3.S.49C and 3.S.49G for balancing electronics of series 3.AB3xx |
| Application note | Distance 2.5-3mm to the receiver must be observed. The active side of the transmitter must be oriented towards the receiver. |
