Article 3.BDM100-1E

Training unit 3.BDM100-1E

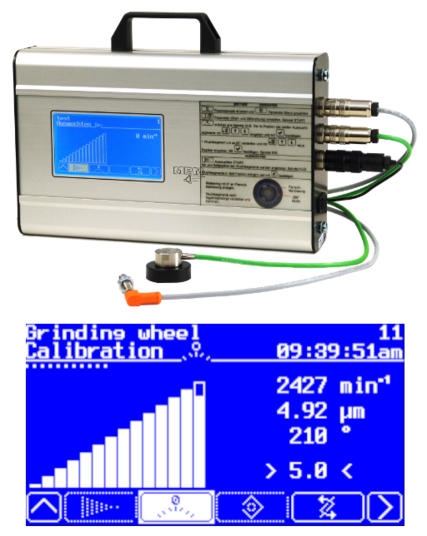

mobile balancing electronics 3.BMT150M

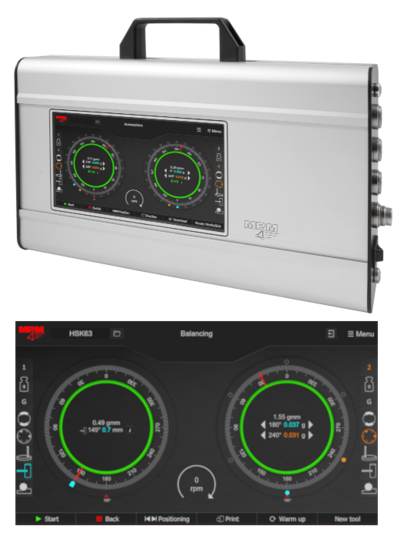

mobile balancing electronics 3.BMT400M.2

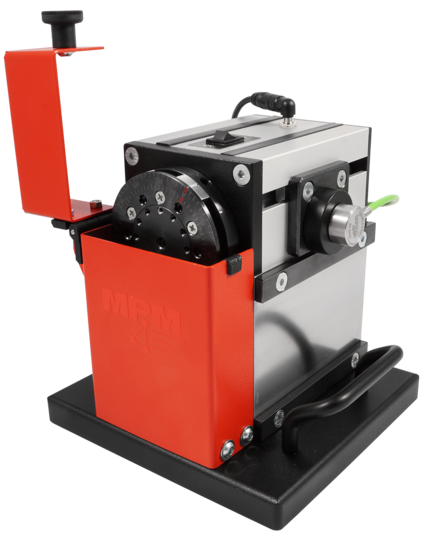

Training unit

for apprentices

  • Balancing methods Fixed position and Spread angle
  • Unbalance and positon can precisely determine with the balancing electronics
  • Following balancing electronics are available:
    BMT150M
    BMT400M

Catalog-# / Description

Catalog-# Order-# Description
3.BDM100-1E 1067620A Training unit without electronics
3.BDM100-1E with BMT150M 1067790A Set balancing unit with balancing electronics 3.BMT150M
3.BDM100-1E with BMT400M 1067791A Set balancing unit with balancing electronics 3.BMT400M

Technical details

Technical data
Dimensions (LxWxH) 190x200x200mm
Drive system DC motor (direct drive)
Voltage 24V, max. 8,5A
Power consumption 57W
Speed 3000 rpm
Weight 10kg
Balancing ring 3.WRS.040.084, balancing capacity 84gcm

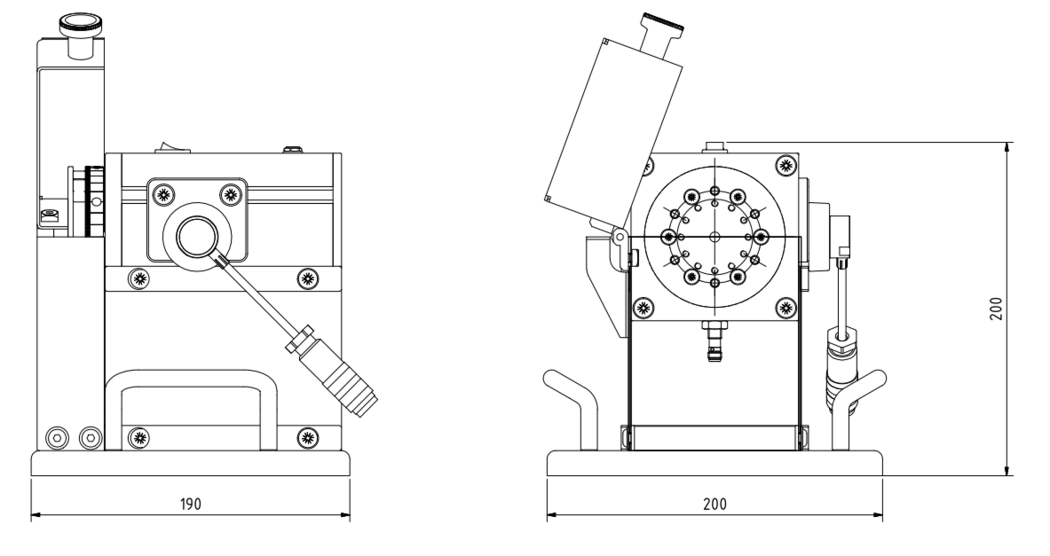

Dimensional drawings

Product video

AccessoryDescriptionArticle
Balancing electronics 3.BMT150M 3.BMT150Mto product
Balancing electronics 3.BMT400M 3.BMT400M to product
Vibration sensor 3.PU.M5.4.3.V2.1 3.PU.M5.4.3.V2.1to product
Speed sensor 3.DS.03.3.0 3.DS.03.3.0to product
