MPM

Article 3.BMT240M.2

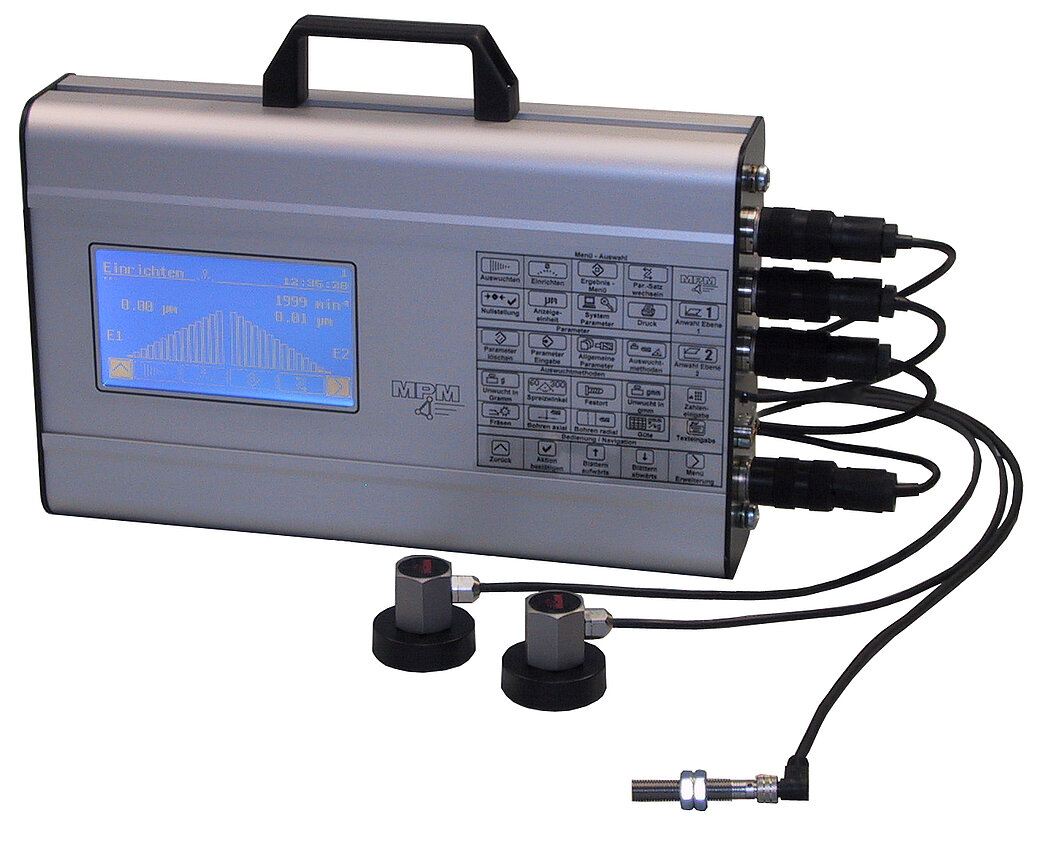

Mobile balancing electronics BMT

For all rotors to be balanced on machines in 2 planes

3.BMT240M.2 (1016238A)

For balancing in 1 + 2 planes, e.g. of: Rollers, shafts, electric motors, test benches, centrifuges, etc.
Especially for large built-in rotors

  • Proven many thousands of times over
  • Simplest operation
  • Touch screen
  • International languages D / E / F / I / CZ / BR / DK ES / NL / SK
  • Immediately usable
  • Data output
  • For speeds from 100 - 100 000min-1
  • Sturdy, shapely aluminium housing
  • Short delivery time
  • Extremely inexpensive!

Catalog-# / Description

Catalog-# Order-# Description
3.BMT240M.2 1016238A Mobile balancing electronics for 1+2-plane balancing

Technical details

Technical data
Operating voltage 24 V=
Power consumption approx. 15 W
Speed range (depending on vibration sensor) 61 to 90000 1/min ±1 1/min
Operation Touchscreen
Display accuracy ±1 digit
Dimensions W x H x D 305 x 190 x 70mm
Weight approx. 3 kg
Standard housing PROFILINE
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +60 °C
Humidity 20 % to 50 % rel. humidity

Dimensional drawings

Application examples

  • Balancing in 2-planes
    with balancing rings
  • Scheme:
    1-plane balancing
    1+2 planes Balancing

Product videos

AccessoryDescriptionArticle
Vibration sensor 3.PUto product
Speed sensors 3.DSto product
Magnetic inserts for speed measurement.
In conjunction with magnetic speed sensor
3.DS.03.3
3.0.M.430602to product
Balancing rings 3.WRto product
Scale rings 3.S360to product
Precision pocket scales 3.CMto product
Grub screw sets for balancing 3.0.WGSto product
Test masses for calibration 3.TGto product
Carrying case 3.TK01to product
