Article 4.SG01

Rapid control unit

For operating Rapid cylindrical grinders 4.RS01.F and 4.RS02.R

  • Electronic control unit with function keys
  • Left / right rotation / stop and speed
  • Potentiometer 0-300min-1

Your benefit

  • Mobile, robust in practical PROFILINE housing
  • Simple operation
  • Clockwise / counterclockwise rotation adjustable
  • Stepless speed adjustment
  • Immediately ready for use

Catalog-# / Description

Catalog-# Order-# Description
4.SG01 1040570A Rapid control unit for operating Rapid cylindrical grinders 4.RS01.F and 4.RS02.R

Technical data

Technical data
Dimensions 305x190x70mm
Weight approx. 3 kg
Operating voltage 100-240V~1, 5A, 47-63Hz
Power input approx. 15 W
Standard enclosure PROFILINE
Ambient operating temperature 0 °C to +50 °C
Ambient storage temperature -10 °C to +60 °C
Air humidity 20 % to 50 % rel. humidity

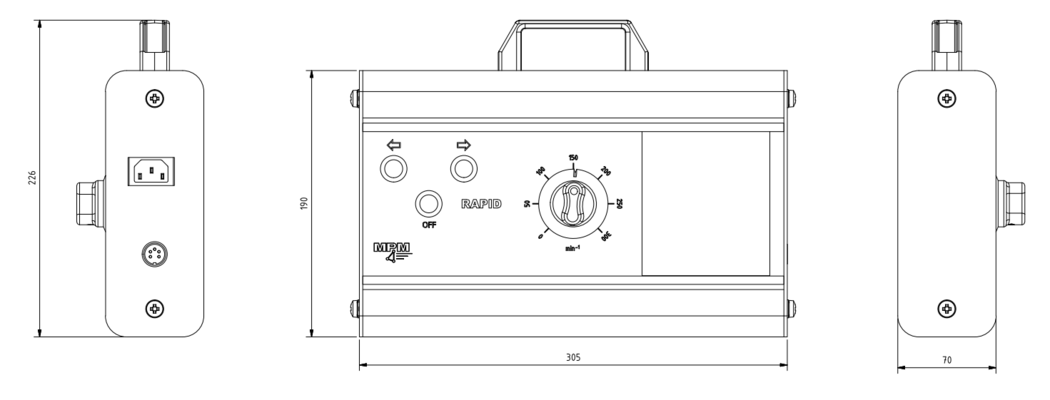

Dimensional drawings

AccessoryDescriptionArticle
Cylindrical grinding unit Rapid mini, for flying grinding 4.RS01.Fto product
Cylindrical grinding unit Rapid mini, for grinding between centres 4.RS02.Rto product
