MPM

Article 3.SPSH

3.SPSH01

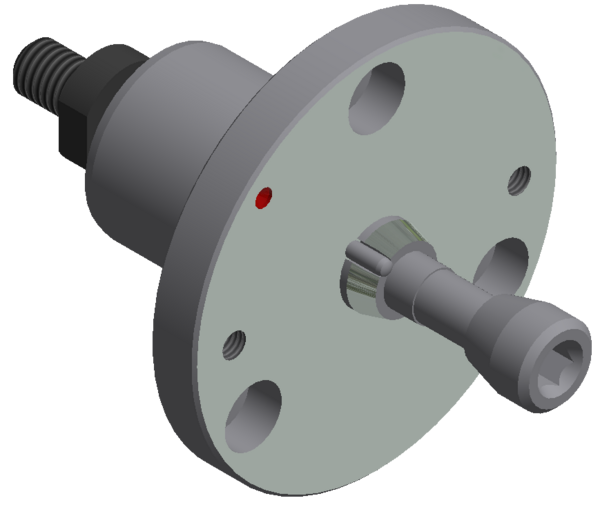

3.SPSH02

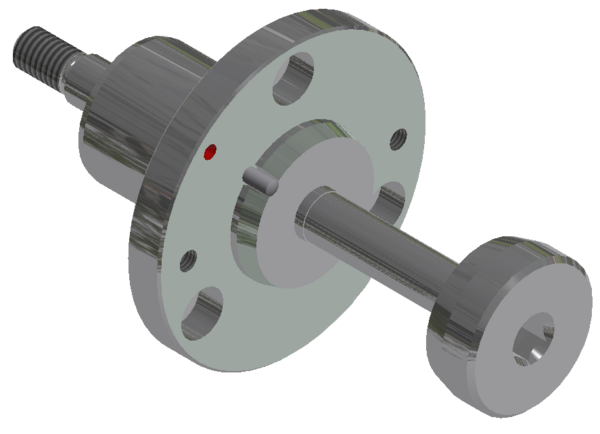

3.SPSH05

Clamping sets for expansion sleeves

for S40/TS40 and S100/TS100 balancing machines

  • For holding expansion sleeves in conjunction with clamping adapters 3.AD.P.SH or 3.A.SH
  • Automatic feed (pneumatic)
  • Including fixing screws

Catalog-# / Description

Catalog-# Order-# Clamping Ø [mm]
3.SPSH.01 1017889A 8,00-14,99
3.SPSH.02 1017890A 15,00-19,99
3.SPSH.03 1029468A 20,00-25,99
3.SPSH.04 1017893A 26,00-33,99
3.SPSH.05 1017894A 34,00-44,99
3.SPSH.06 1017895A 45,00-59,99
3.SPSH.07 1017896A 60,00-80,00
3.SPSH.08 43-005-443 80,01-99,99
3.SPSH.09 1017897A 100,00-120,00
AccessoryDescription Article
Clamping adapter for expansion sleeves
for S40 / TS40
3.AD.P.SHto product
Clamping adapter for expansion sleeves
for S100 / TS100
3.A.SHto product
Expansion sleeves 3.SHto product
Support plate for clamping sets 3.ALT.43-005-324to product
TS40-Station 3.BMT200-TS40to product
TS100-Station 3.BMT200-TS100to product
Grub screw sets 3.0.WGSto product
Precision pocket scales 3.CMto product
Test masses for calibration 3.TGto product
Balancing putty 3.0.WK02to product
