MPM

Article 3.5/8xxSB

3.5/8xxSB

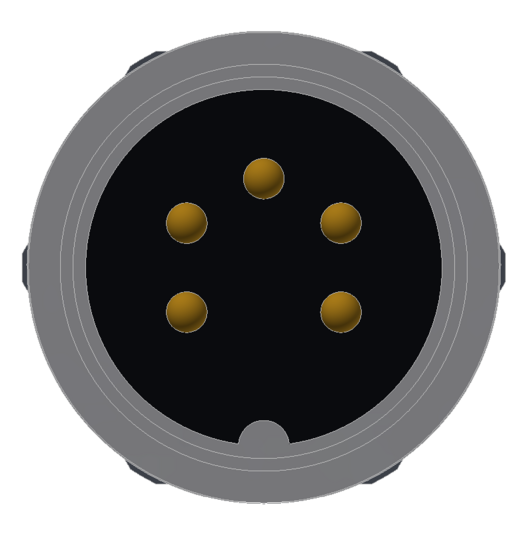

male, 5-way

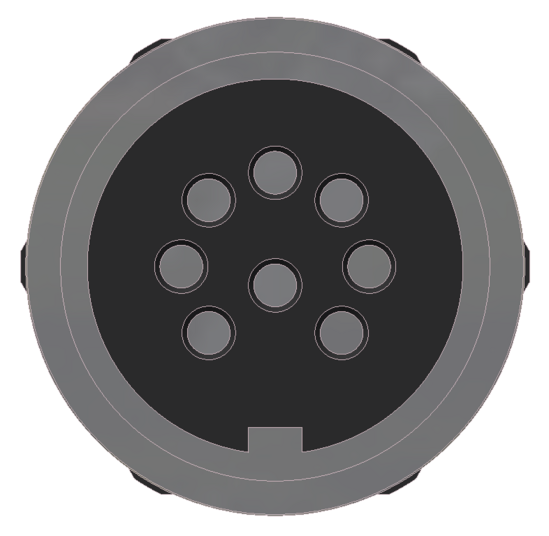

female, 8-way

3.5/8xxSB / 3.5/8xxSB/0 / 3.5/8xxSB/2

  • Connector / Socket
  • 5-pole / 8-pole

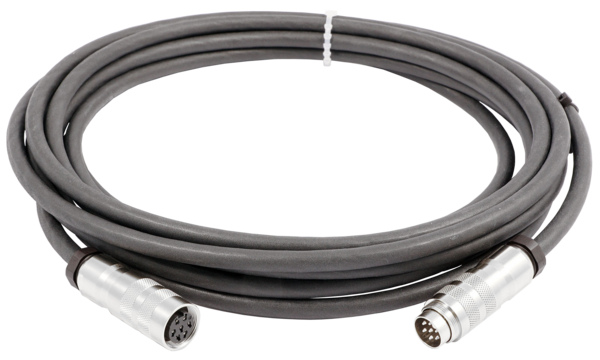

  • Connection cable from the acoustic emission module to the 3rd KSVU

Further cable lengths on request.

Catalog-# / Description

Catalog-# Order-# Description
3.5/800.5SB 1015148A Cable length 0,5m, 5/8-pole
3.5/800.5SB/0 1015149A Cable length 0,5m, 5/8-pole
3.5/801SB 1015150A Cable length 1m, 5/8-pole
3.5/801SB/0 1015151A Cable length 1m, 5/8-pole
3.5/801SB/2 1015152A Cable length 1m, 5/8-pole
3.5/803SB 1015154A Cable length 3m, 5/8-pole
3.5/803SB/0 1015155A Cable length 3m, 5/8-pole
3.5/803SB/2 1015156A Cable length 3m, 5/8-pole
3.5/805SB/0 1015157A Cable length 5m, 5/8-pole
3.5/805SB/2 1015158A Cable length 5m, 5/8-pole
3.5/810SB 1015166A Cable length 10m, 5/8-pole
3.5/810SB/0 1015168A Cable length 10m, 5/8-pole
3.5/810SB/2 1015169A Cable length 10m, 5/8-pole
3.5/815SB 1015174A Cable length 15m, 5/8-pole
3.5/815SB/0 1015175A Cable length 15m, 5/8-pole
3.5/815SB/2 1015176A Cable length 15m, 5/8-pole
3.5/820SB 1015180A Cable length 20m, 5/8-pole
3.5/820SB/0 1015181A Cable length 20m, 5/8-pole
3.5/820SB/2 1015182A Cable length 20m, 5/8-pole

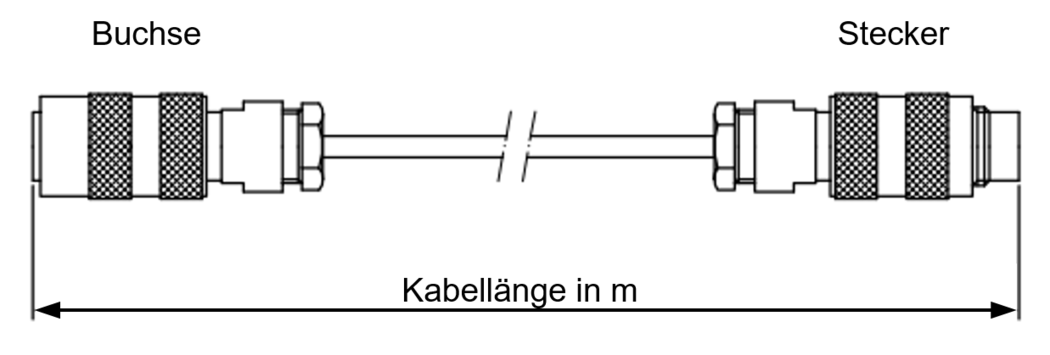

Dimensional drawings
