Article 3.BMT340SM3.DPV1

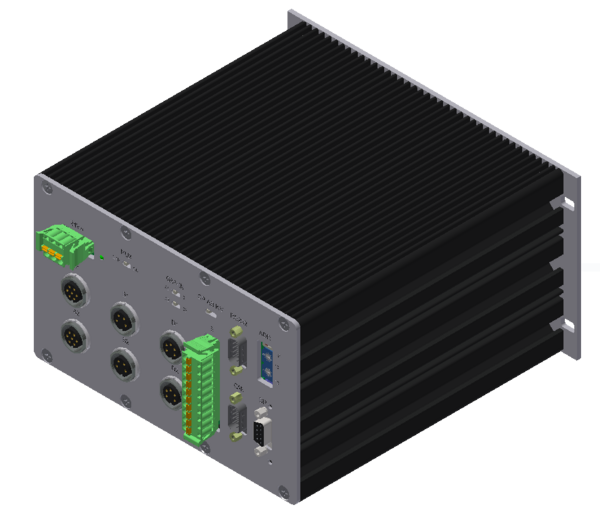

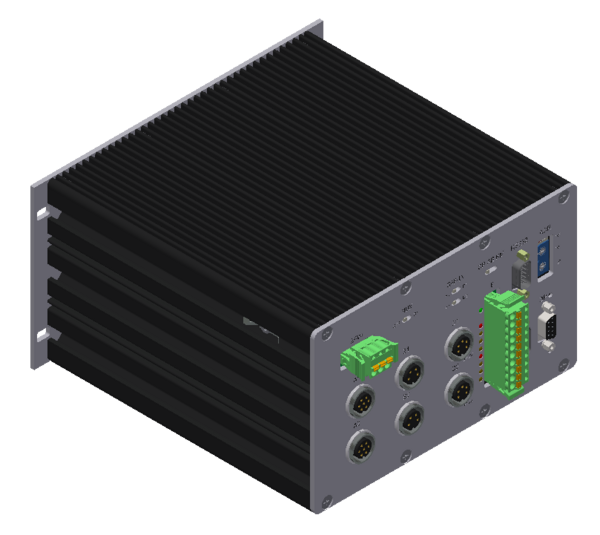

Balancing module, manual BMT340SM3.DPV1 with Profibus

For manual balancing on grinding machines

  • Manual balancing in 2 planes (with 2nd vibration sensor)
  • With 1 or 2-channel AE structure-borne sound connection with integrated amplifiers (optional)
  • Profibus interface
  • Short delivery time

Selection guide

AE filter types Description
A for balancer (GA) or ASK sensor
E for ASM sensor
Q for fluid sensor
T for balancing device (G) or ASK sensor

Catalog-# / Description

Catalog-# Order-# Description
3.BMT340SM3.DPV1 1016307A Without structure-borne sound
3.BMT340SM3.KM.V1A.DPV1 1016308A With 1 structure-borne sound connection Filter type A
3.BMT340SM3.KM.V1E.DPV1 1038128A With 1 structure-borne sound connection Filter type E
3.BMT340SM3.KM.V1T.DPV1 1043111A With 1 structure-borne sound connection Filter type T
3.BMT340SM3.KM.V2AA.DPV1 1016309A With 2 structure-borne sound connections Filter type A / A
3.BMT340SM3.KM.V2EE.DPV1 1044945A With 2 structure-borne sound connections Filter type E / E
3.BMT340SM3.KM.V2TT.DPV1 1038132A With 2 structure-borne sound connections Filter type T / T

Technical details

Technical data
Operating voltage DC 24 V=
Power consumption approx. Pmax 125VA
Software update Via RS232 interface
Speed sensor connection 7-pole
Vibration sensor connection 4-pole, 5Vpp, max. +/- 10V=
Structure-borne sound sensor connection (optional) 5-pole
External output D-SUB socket 9-pin
Operation 3.BM340 or machine control
Speed measuring range 60-120.000min-1
Standard housing SM3, aluminium
Dimensions W x H x D [mm] 220x120x206
Weight approx. 3 kg
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +70 °C
Humidity 20 % to 50 % relative humidity

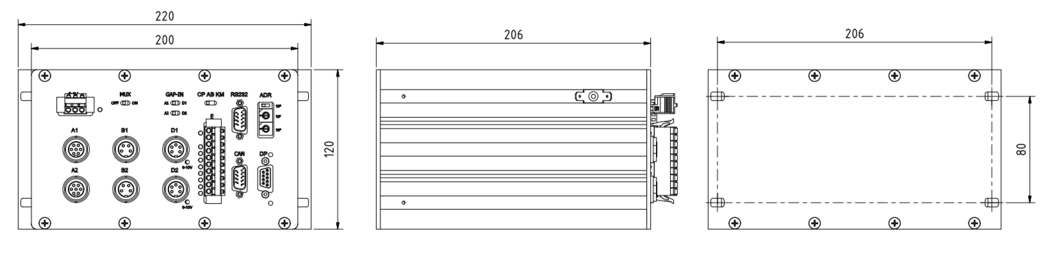

Dimensional drawings

Application examples

  • Manual balancing system BMT340SM3
    with Profibus
  • Manual balancing system BMT340SM3
    with Profibus
    and external AE structure-borne sound sensor
AccessoryDescription Article
Operating modules 3.BM340to product
CAN-USB adapter 3.CAN.USB.350to product
Data cable 3.DKC.B09xxto product
Vibration sensor 3.PUto product
Cable (extension), 4-pin
for vibration sensors
Socket / Plug
3.4xxBSto product
Speed sensors 3.DSto product
Cable (extension), 7-pin
for speed sensor
Socket / Plug
3.7xxBSto product
Magnetic inserts for speed measurement.
In conjunction with magnetic speed sensor
3.DS.03.3
3.0.M.430602to product
Balancing rings 3.WRto product
Scale rings 3.S360to product
AE structure-borne sound sensors 3.ASK / 3.ASMto product
Cable (extension), 7/5-pin
for AE structure-borne sound sensors
Socket / Plug
3.7/5xxBSto product
Precision pocket scales 3.CMto product
Grub screw sets for balancing 3.0.WGSto product
Test masses for calibration 3.TGto product
