Article 3.AB300T1.K.24 and 3.AB300T1.K.230

AB300T1.K

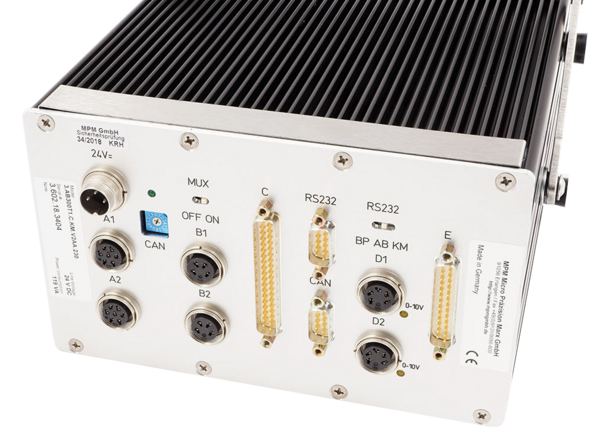

3.AB300T1.K Rear

Balancing electronics, automatic AB300

For full automatic balancing on grinding machines with MPM external- or internal-mounted balancers with collector control

  • Desktop housing, aluminium
  • Collector control
  • Simplest operation
  • Touch screen
  • Compatible with all MPM collector balancers
  • CAN-Bus data output
  • Short delivery time

Selection guide

Catalog-# / Description

Catalog-# Order-# Description
3.AB300T1.K.24 1055178A Balancing electronics AB300 for collector in table housing 24V
3.AB300T1.K.230 1055181A Balancing electronics AB300 for collector in table housing 230V

Technical details

Technical data
Operating voltage 24 V= / 230 V
Power consumption approx. 73 VA
Balancer connection 5-pole
Vibration sensor connection 4-pole
Operation Touchscreen
Display accuracy ±1 digit
Dimensions W x H x D 200 x 120 x 245mm
Weight approx. 4 kg
Standard housing aluminium profile with plastic front
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +60 °C
Humidity 20 % to 50 % rel. humidity

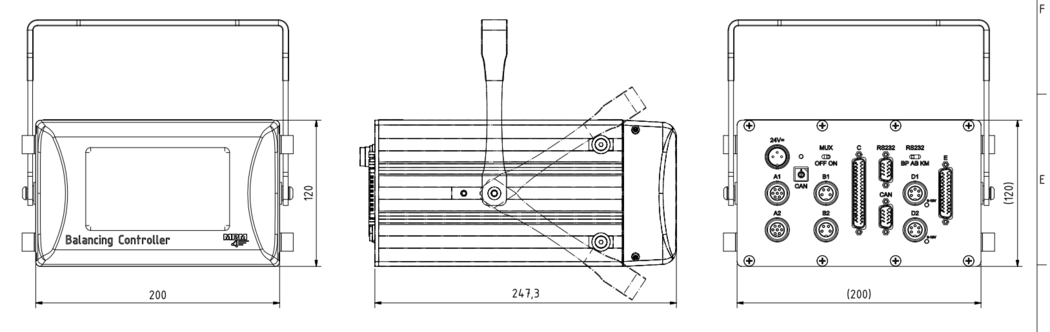

Dimensional drawings

3.AB300T1.K

Application examples

  • Automatical balancing system AB300
    with collector and external balancer type ESB-K
  • Automatic balancing system AB300
    with collector and internal balancer type ISB-K
AccessoryDescription Article
Vibration sensor 3.PUto product
Cable (extension), 4-way
for Vibration sensor
socket / connector 		3.4xxBSto product
External balancer
with collector
socket, 5-way 		3.ESB.xxxA.xxxto product
Cable, 5-way
connection to the balancing electronics
socket / connector 		3.5xxSSto product
Cable (extension), 5-way
socket / connector 		3.5xxBSto product
