3.CS210P02 ContactScope

ContactScope 3.CS210P02

With 1-channel AE acoustic emission connection for AE sensors (contact or contactless)
Adjustable gain and offset

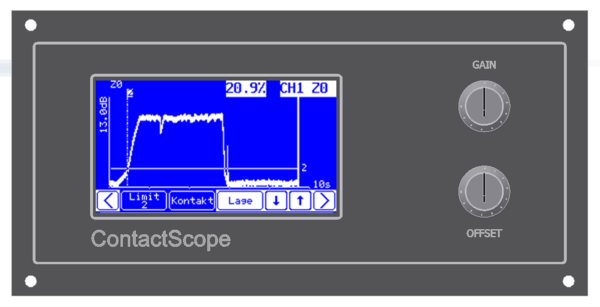

Graphical representation
Lightning fast (0.5ms) signal transmission to the machine control system
Up to 16 different measuring tasks (cycles) can be parameterized
Limit overruns or underruns can be evaluated. Up to 3 limits per cycle
The cycles are selected by the machine control via digital inputs.
The measuring process is started by a signal from the machine control system.
Compact, cost-effective unit
Short delivery time

AE filter types	Description
A	for balancer (GA) or ASK sensor
E	for ASM sensor
Q	for fluid sensor
T	for balancing device (G) or ASK sensor

Catalog-#	Order-#	Description
3.CS210P02.E/A.24	1016365A	Without integrated acoustic emission amplifier
3.CS210P02.V1A.E/A.24	1047147A	With 1 integrated acoustic emission amplifier Filter type A
3.CS210P02.V1E.E/A.24	1052580A	With 1 integrated acoustic emission amplifier Filter type E

Technical data
Operating voltage	DC 24 V=
Power input approx.	4 VA
Operating	Touchscreen
Measuring range	0…10 V, 2 s…60 min

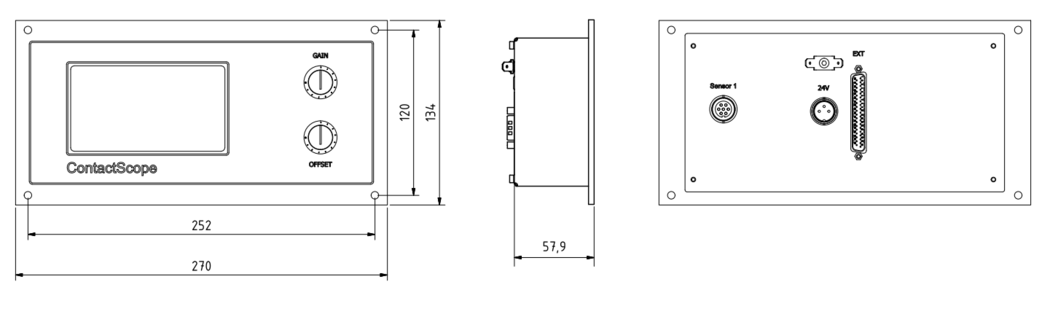

Dimensions W x H x D	241 x 134 x 72 mm
Weight approx.	2 kg
Standard housing	½ 19“
Ambient operating temperature	0 °C to +50 °C
Ambient storage temperature	-10 °C to +70 °C
air humidity	20 % to 50 % rel. humidity
