Article 3.CS210P01

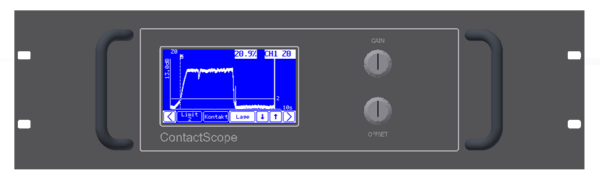

ContactScope 3.CS210P01

Visualization and control of grinding and dressing processes in 19" housing

  • With 1-channel AE acoustic emission connection for AE sensors (contact or contactless)
  • Adjustable gain and offset
  • Graphical representation
  • Lightning fast (0.5ms) signal transmission to the machine control system
  • Up to 16 different measuring tasks (cycles) can be parameterized
  • Limit overruns or underruns can be evaluated. Up to 3 limits per cycle
  • The cycles are selected by the machine control via digital inputs.
  • The measuring process is started by a signal from the machine control system.
  • Compact, cost-effective unit
  • Short delivery time
AE filter types Description
A for balancer (GA) or ASK sensor
E for ASM sensor
Q for fluid sensor
T for balancing device (G) or ASK sensor

Catalog-# / Description

Catalog-# Order-# Description
3.CS210P01.E/A.24 1016358A Without integrated acoustic emission amplifier
3.CS210P01.V1A.E/A.24 1038075A With 1 integrated acoustic emission amplifier Filter type A
3.CS210P01.V1E.E/A.24 1016363A With 1 integrated acoustic emission amplifier Filter type E
3.CS210P01.V1T.E/A.24 1058087A With 1 integrated acoustic emission amplifier Filter type T

Technical details

Technical data
Operating voltage DC 24 V=
Power input approx. 4 VA
Operation Touchscreen
Measuring range 0…10 V, 2 s…60 min
Dimensions W x H x D 482 x 134 x 72 mm
Weight approx. 2 kg
Standard housing 19“
Ambient operating temperature 0 °C to +50 °C
Ambient storage temperature -10 °C to +70 °C
Air humidity 20 % to 50 % rel. humidity

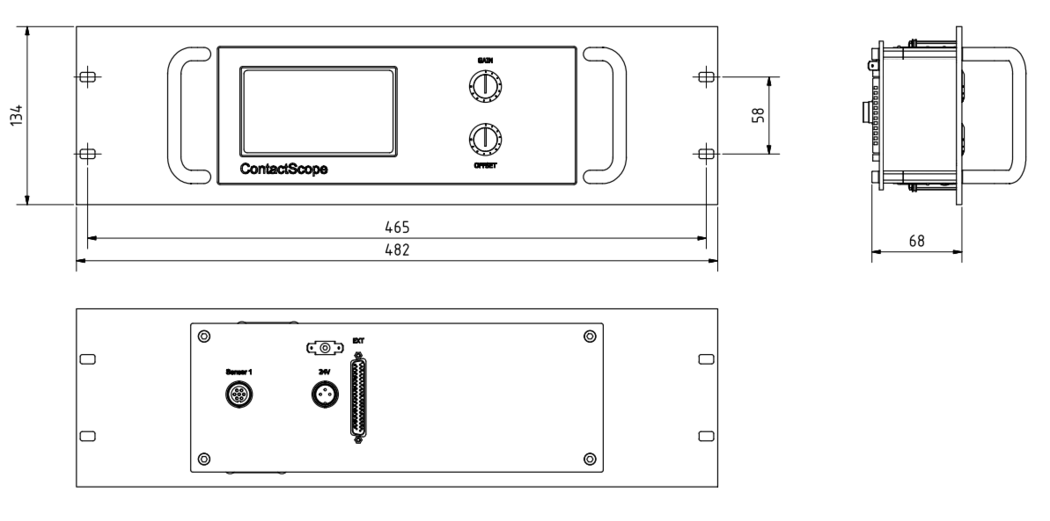

Dimensional drawings

Application example

  • ContactScope 3.CS210P01
    optionally with AE sensors ASM / ASK / FS

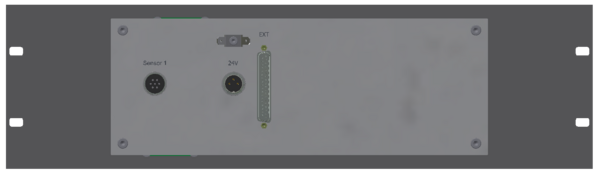

Further images
