Article 3.BMT240M.T.2.S3.E/A

3.BMT240M.T.2.S3.E/A
Complete system
BalconBMT-Software

Balancing electronic for horizontal balancing machine HM50

For balancing cylindrical and shaft-shaped rotors

3.BMT240M.T.2.S3.E/A (1046569A)

For balancing in 1 + 2 planes,
in conjunction with 3.HM50 and start module 3.HM50.SM

  • Extremely simple operation via Quickstart keys
  • Connection to PC (customer side with Windows10) via CAN / CAN-USB connection
  • Incl. balancing software BalconBMT
  • International Languages D / E / F / I / ES / PT / RU / ZH / HR
  • For speeds from 61 - 90 000min-1
  • Sturdy, shapely aluminium housing (PROFILINE housing)

Technical details

Technical data
Operating voltage 230V / 50Hz
Power input approx. 120 W
Speed range (depending on vibration sensor) 61 to 90000 1/min ±1 1/min
Operation Quick Start Keys
Dimensions W x H x D 306 x 190 x 175mm
Weight approx. 3 kg
Standard enclosure PROFILINE
Ambient operating temperature 0 °C to +50 °C
Ambient storage temperature -10 °C to +60 °C
Air humidity 20 % to 50 % rel. humidity

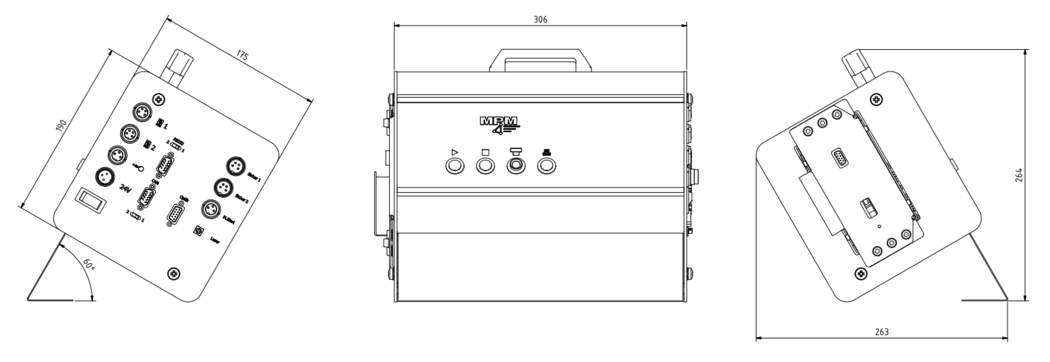

Dimensioned drawing

AccessoryDescription Article
Horizontal balancing machine 3.HM50 / 3.HM50-30HF 3.HM50 / 3.HM50-30HFto product
Start module for 3.HM50 3.HM50.SMto product
CAN-USB adapter,
Connection between PC and data cable
3.CAN.USB.TSto product
Data cable, 9-pin,
Connection between balancing electronic and CAN-USB adapter
3.DKC.B09.01to product
HM50 workplace / protective enclosure 3.HM50.SE / 3.HM50.SHto product
Precision pocket scales 3.CMto product
Grub screw sets 3.0.WGSto product
Vibration sensor for 3.HM50 3.PU.M6.3.0.V2.1to product
Cable 4/3-pole for HM50 vibration sensor 3.4/301SBto product
Speed sensor optical for 3.HM50 3.DS.PZ-G101CNto product
Cable 4/3-pole for HM50 speed sensor
3.DS.PZ-G101CN
3.4/305BS.DS.M8.1to product
Articulated tripod, for mounting the speed sensor 3.0.GS01to product
Test masses for setup / calibration 3.TGto product
Balancing putty 3.0.WK02to product
